Level Meter

UEM-1

Level Meter UEM-1

Purpose

Continuous automatic measurement of liquid, bulk, fine-grained and powder media level in bunkers, silos, and other open production containers with manual and automatic measurement mode activation.

Application Area

Process containers and apparatus of mining, hydrometallurgical, chemical and other industries. Control of level limit values.

Principle of Operation

Based on height measurement by a probe suspended on a flexible cable at the moment of contact with the surface of the controlled material.

Advantages

Simple design, reliability, minimal power consumption, moderate price. Use of the level meter expands technical capabilities for measuring levels of bulk, fine-grained and powder media.

Technical Specifications

Basic reduced error
±0.1%
Level meter maintains its metrological characteristics at temperature:
- for movement mechanism and probe
from minus 25 to 55°C
- for BOS and PBR
from plus 5 to 50°C
Supply voltage
220+22-33 V
Power consumption
not more than 180 VA
Controlled material temperature
from plus 1 to 100°C
Average service life of level meter
6 years
Overall dimensions, not more than:
- probe
120 × 120 × 60 mm
- movement mechanism
650 × 560 × 600 mm
- contactless reversible starter
250 × 180 × 100 mm
- signal processing unit
200 × 274 × 105 mm
Weight, not more than:
- probe
4 kg
- movement mechanism
80 kg
- contactless reversible starter
5 kg
- signal processing unit
5 kg

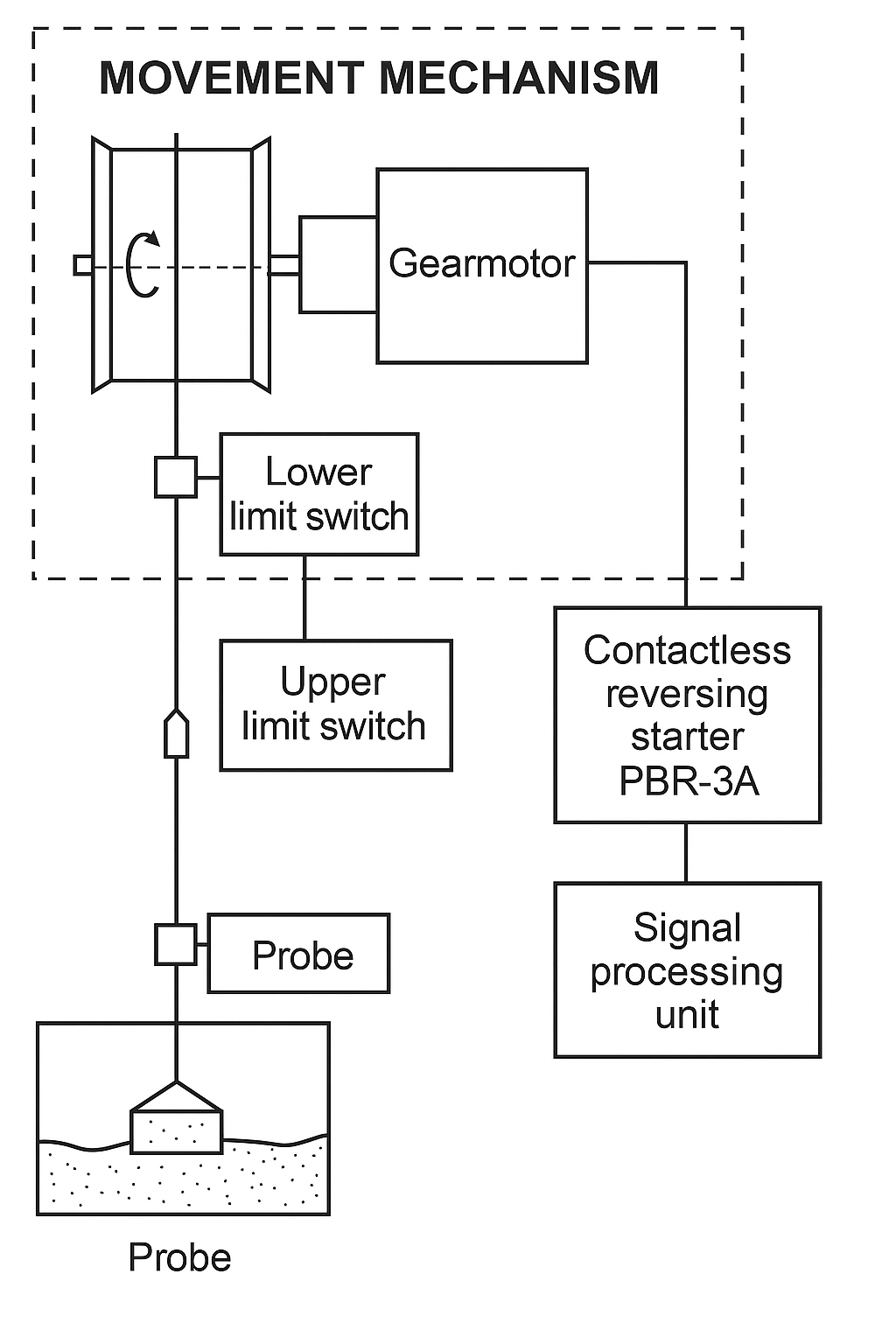

Product composition

  • Movement mechanism
  • Probe
  • Contactless reversible starter
  • Signal processing unit

Panel cutout size for signal processing unit installation: 222 × 292 mm.
Upon Customer's request, BOS can have output signal 0-5 or 4÷20 mA.
